PicoCTF asm3 writeup

Description

What does asm3(0xd73346ed,0xd48672ae,0xd3c8b139) return? Submit the flag as a hexadecimal value (starting with ‘0x’). NOTE: Your submission for this question will NOT be in the normal flag format.

Solution

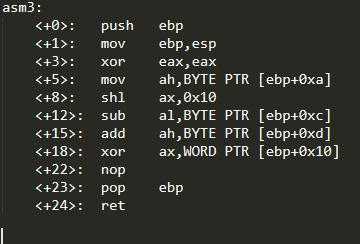

Let’s look at the assembly code provided

First the eax is set to 0 with the xor instruction, then we move the byte at [ebp+0xa] (10 bytes from ebp) to ah, which is an 8 bit register within rax as shown below

The arguments passed to the function are at: 1st [ebp+0x8] - 0xd73346ed, 2nd [ebp+0xc] - 0xd48672ae and 3rd [ebp+0x10] - 0xd3c8b139. Remembering that the bytes are stored in reversed order, the byte at [ebp+0xa] is 0x46. So after the mov instruction ah would be 0100 0110 0000 0000 in binary

After that we shift left by 0x10 (16 bytes). The ah (now eax) becomes: 0100 0110 0000 0000 0000 0000 0000 0000

Then we subtract the [ebp+0xc] (12th byte) from al. Since al is 0 the equation is 0x00 - 0xae. The result is -0xae however we need to convert it to positive number because we are not working on signed integers. To do that, we flip the bits and add 1

1010 1110  0xae
0101 0001  +1
0101 0010  0x52

The eax is: 0100 0110 0000 0000 0000 0000 0101 0010. Now the addition of [ebp+0xd] (13th byte) to ah. Ah is 0 so we just put the 0x72 into ah. Eax: 0100 0110 0000 0000 0111 0010 0101 0010

Last meaningful instruction is the xor operation on ax and WORD (2 bytes) starting at [ebp+0x10]. These 2 bytes are 0xb139 (last two of the third argument - but first two in memory). It’s important to remember that xoring the ax will zero out the upper bits of the register

0100 0110 0000 0000 0111 0010 0101 0010
					1011 0001 0011 1001  0xb139
					1100 0011 0110 1011  = 0xc36b

0xc36b
